spring MVC project using mybatis

한글블로그로 보기

testServer.zip

I based this posting Install spring framework+maven+tomcat in Eclipse

1. Add dependency in pom.xml file

Searching and add mybatis

Searching and add mybatis-spring

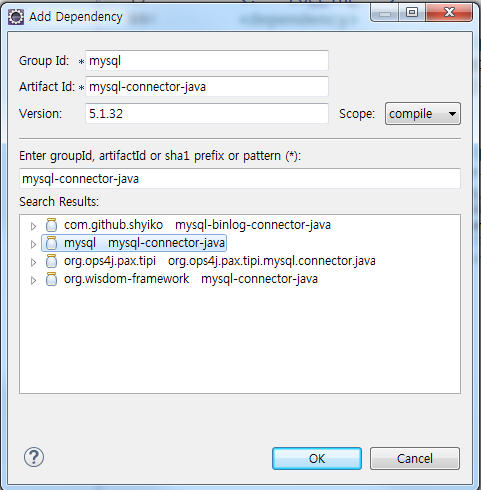

Searching and add mysql-connector-java

Searching and add spring-jdbc

2. Add namespace in root-context.xml file.

Click to  src->main->webapp->WEB-INF->spring->root-context.xml  and Namespaces tab

3. Add bean

Click to Source tab

Add this code

1.     <bean id="dataSource"
2.         class="org.springframework.jdbc.datasource.SimpleDriverDataSource">
3.         <property name="driverClass" value="com.mysql.jdbc.Driver"></property>
4.         <property name="url" value="jdbc:mysql://localhost/netplug"></property>
5.         <property name="username" value="root"></property>
6.         <property name="password" value="1234"></property>
7.     </bean>
8.
9.     <bean id="sqlSessionFactory"
10.         class="org.mybatis.spring.SqlSessionFactoryBean">
11.         <property name="dataSource" ref="dataSource"></property>
12.         <property name="configLocation"
13.             value="classpath:mybatis/mybatis-config.xml">
14.         </property>
15.     </bean>
16.
17.     <bean id="transactionManager"
18.         class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
19.         <property name="dataSource" ref="dataSource"></property>
20.     </bean>
21.
22.     <bean id="sqlSession"
23.         class="org.mybatis.spring.SqlSessionTemplate">
24.         <constructor-arg  ref="sqlSessionFactory"></constructor-arg>
25.     </bean>

Line4~6 : your mysql setting.

My case schema is netplug and table is 0000dc180000

4. mapper config

Make a package for mapper to src->main->resources

package name is mybatis

make xml files

file name is mapper.xml and mybatis-config.xml

mybatis-config.xml

1. <?xml version="1.0" encoding="UTF-8"?>
2. <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD config 3.0//EN"
3. "http://mybatis.org/dtd/mybatis-3-config.dtd">
4.
5. <configuration>
6.     <mappers>
7.         <mapper resource="mybatis/mapper.xml" />
8.     </mappers >
9. </configuration>

mapper.xml

1. <?xml version="1.0" encoding="UTF-8"?>
2. <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
3. "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
4. <mapper namespace= "userControlMapper" >
5.     <select id ="selectSample" parameterType="java.util.HashMap" resultType= "java.util.HashMap">
6.         select *
7.         from 0000dc180000
8.
9.     </select >
10. </mapper>

5. Java coding

Click to locate src->main->java->com->answerofgod->spring->HomeController.java

Maybe different folder.

com.answerofgod.spring is my package name.

HomeController.java

1. @Controller
2. public class HomeController {
3.
4.     private static final Logger logger = LoggerFactory.getLogger(HomeController.class);
5.
6.     @Autowired
7.       private SqlSession sqlSession;
8.
9.     /**
10.      * Simply selects the home view to render by returning its name.
11.      */
12.     @RequestMapping(value = "/", method = RequestMethod.GET)
13.     public String home(Locale locale, Model model) {
14.         logger.info("Welcome home! The client locale is {}.", locale);
15.
16.         Date date = new Date();
17.         DateFormat dateFormat = DateFormat.getDateTimeInstance(DateFormat.LONG, DateFormat.LONG, locale);
18.
19.         String formattedDate = dateFormat.format(date);
20.
21.         model.addAttribute("serverTime", formattedDate );
22.
23.         List<HashMap<String, String>> outputs = sqlSession.selectList("userControlMapper.selectSample");
24.         model.addAttribute("showDB", outputs.toString());
25.
26.
27.         return "home";
28.     }
29.
30. }

add Line 6~7 and Line 23~24

6. JSP coding

Click to src->main->webapp->WEB-INF->views->home.jsp

home.jsp

1. <%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
2. <%@ page session="false" %>
3. <%@ page contentType="text/html; charset=UTF-8" %>
4. <html>
5. <head>
6.     <title>Home</title>
7. </head>
8. <body>
9. <h1>
10.     Hello world!
11. </h1>
13. <P>  The time on the server is ${serverTime}. </P>
14. <p> This is my Database </p>
15. <p> ${showDB}</p>
16. </body>
17. </html>

add Line 14~15

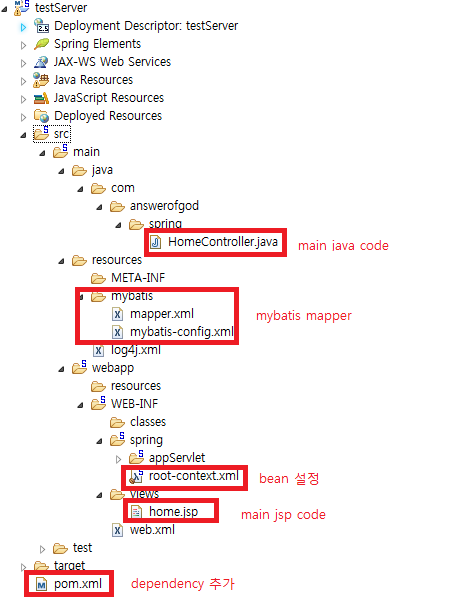

This is my project directory.

run as-> run on server
